CHP Constant Wattage Heat Cable
Previous
Next
Welcome To Share This Page
CHP Constant Wattage Heat Cable which is also known as series resistance heat cable, heating cable, heat tracing cable, or heater cable.
- CHP is a electrical constant wattage heating cable for long pipes or vessels where can be used for freeze protection or temperature maintenance in industrail field.
- It is normally suited to long metal / nonmetal pipes such as oil line.
- CHP circuit lengths can be up to 3KM.
- It must be designed by your applications, and can NOT be cut-to-length at site.
- CHP is approved for use in non-hazardous and hazardous areas.
- Its constant wattage characteristics can make it possible for steady thermal output against its thermostat, like PT100 sensor.
- CHP supply constant wattage regardless of the output of the current and voltage drop where it used for.
- It also can be manufactured by custom color and size.
- Please use approved accessories with CHP constant wattage heat cable.

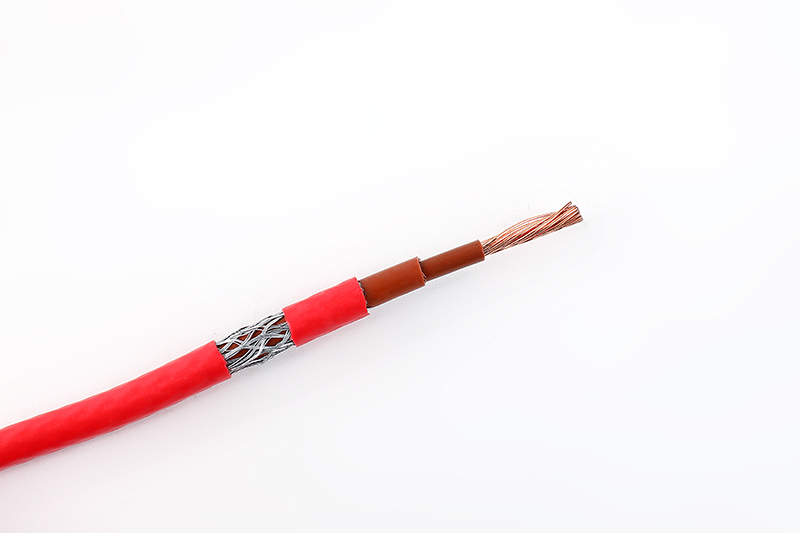

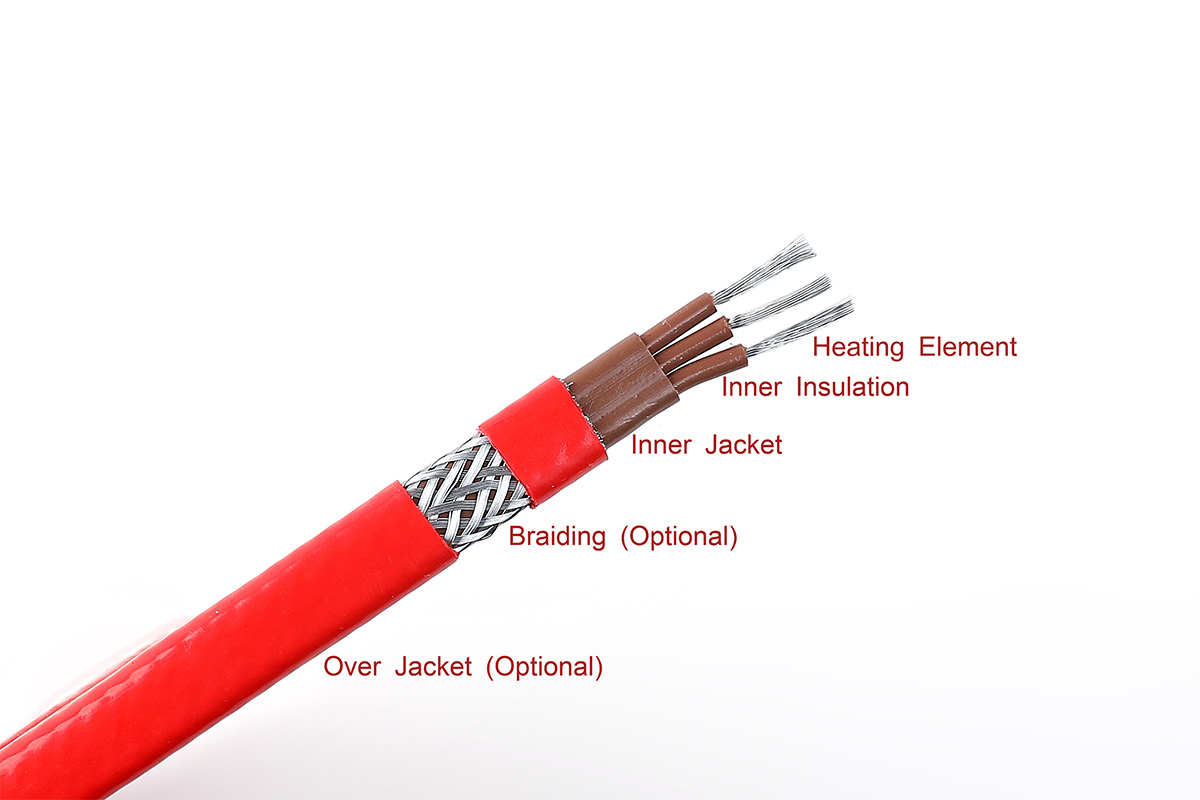

CONSTRUCTION:
| HEATING ELEMENT: | Tinned-Copper or Nickel Plated Copper Conductor |
| INNER INSULATION: | Fluoropolymer(F46) or Perfluoroalkoxy(PFA) |
| INNER JACKET: | Fluoropolymer(F46) or Perfluoroalkoxy(PFA) |
| BRAIDING (Optional): | Tinned-Copper Wire |
| OVER JACKET(Optional): | Fluoropolymer(F46) |
SPECIFICATION:
| MAX. CONTINUOUS EXPOSURE TEMPERATURE (Power off): | 230ºC (446ºF) |
| MIN. OPERATING TEMPERATURE: | -25℃ (-13℉) |
| POWER SUPPLY: | AC 36/110/220/380/660V |
| MIN. BENDING RADIUS： | 45mm |
| OUTPUT: | Custom W/m |
| COLOR: | Red or Custom |
| TEMPERATURE CLASSIFICATION: | T3 200℃（392ºF）, T4 135℃（275ºF）, T5 100℃（212ºF）, T6 85℃(185ºF) |
