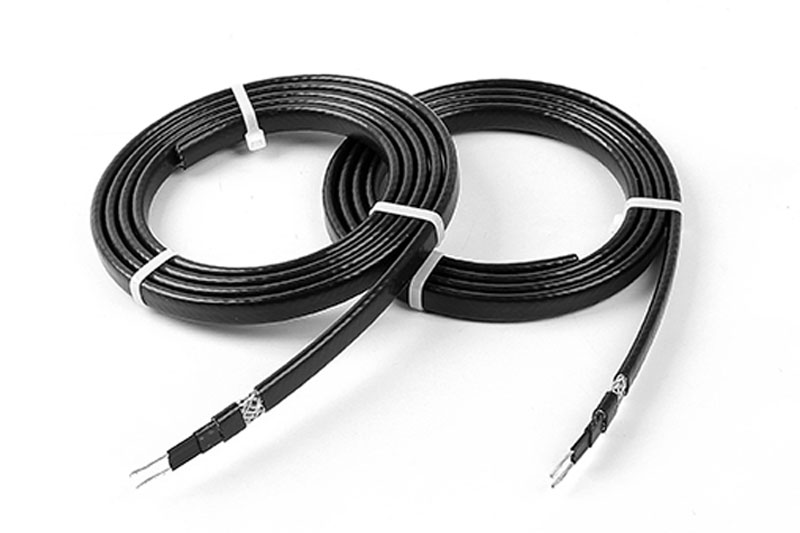

DBR Series Self Regulating Heat Trace Cable
Previous
Next
Welcome To Share This Page
Self regulating heat trace cable, which is also known as self limiting heat trace cable, heating cable, heat tracing cable, or heater cable.
- DBR is a low temperature self regulating heating cable for pipes ,tanks and vessels, which can be used for freeze protection or temperature maintenance in industrail field.
- DBR also can be used for deicing heat tracing cable, self regulating gutter heat cable and self regulating roof heat cable in residential field.
- It is normally suited to small diameter metal / non-metal pipes and roof & gutter tracing heat.
- It can be cut-to-length at site.
- DBR is approved for using in non-hazardous and hazardous areas.
- Its self regulating heating element (PTC: Positive Temperature Coefficiment) improve safety and reliability.
- DBR will not overheat or burnout, even when wrapped by itself.
- Its power output is self regulated in response to the pipe & ambient temperature.
- DBR can be manufactured by custom color and size.
- Please use approved termination, splicing and power connection components with DBR heat trace cable.

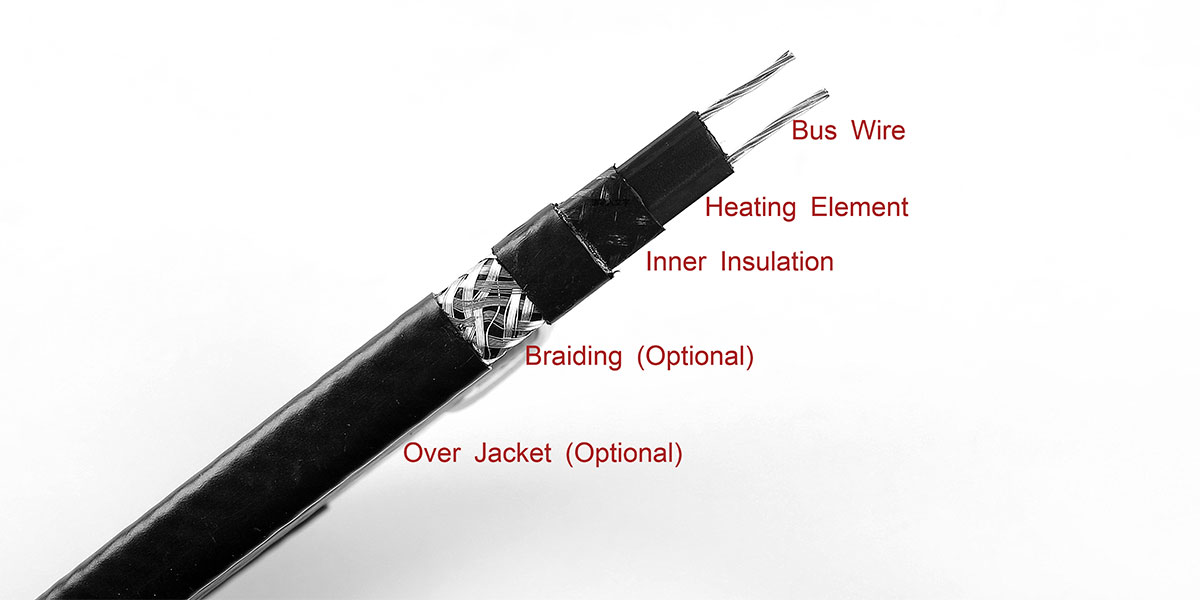

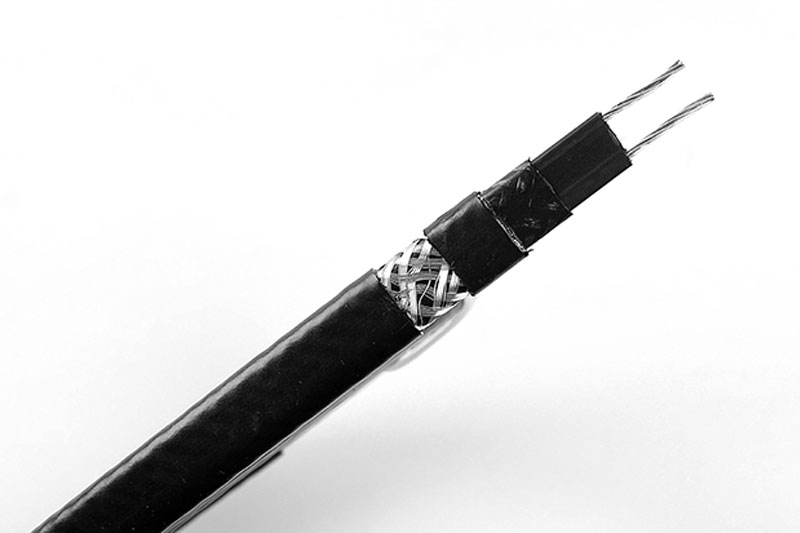

CONSTRUCTION:
| BUSWIRE: | Tinned-Copper or Nickel Plated Copper |
| PTC HEATING ELEMENT: | PTC (Positive Temperature Coefficient) Self Regulating Matrix |
| INNER INSULATION: | Polyolenfin (PE) or Fluoropolymer (F46) |
| BRAINDING (Optional): | Tinned-Copper Wire |
| OVERJACKET(Optional): | Polyolenfin (PE) or Fluoropolymer(F46) |
SPECIFICATION:

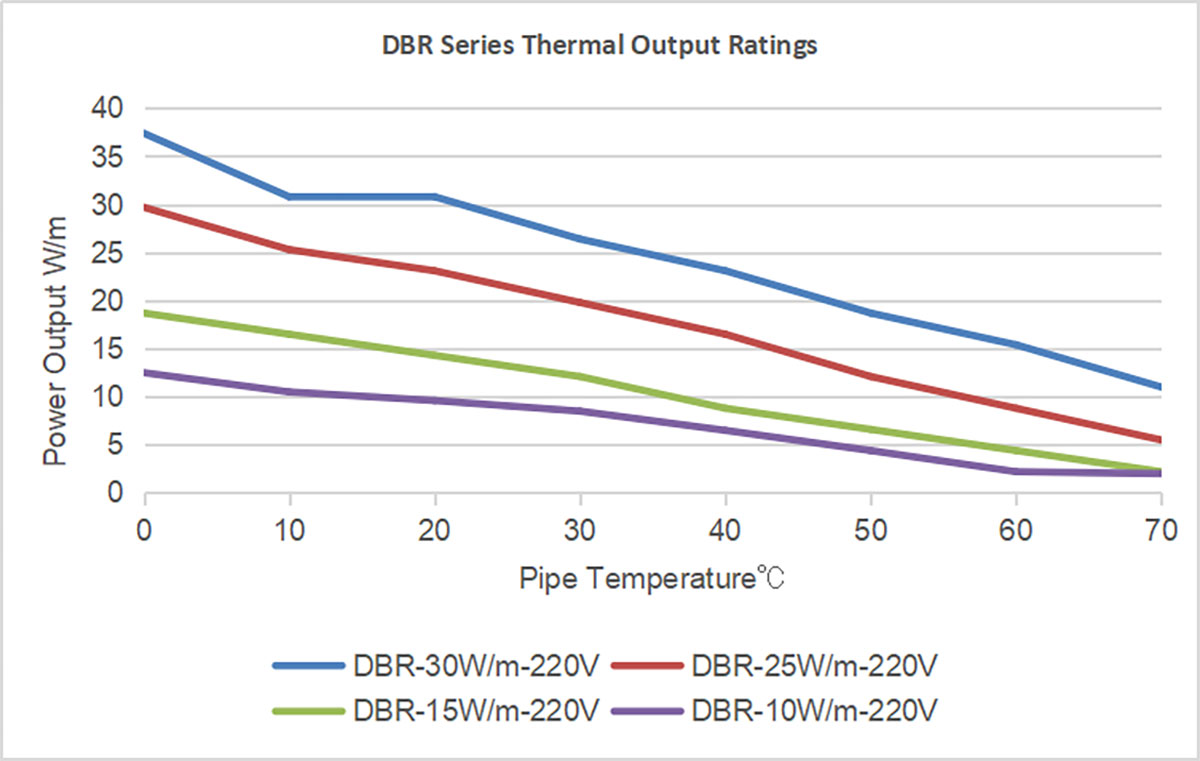

| MAX. CONTINUOUS EXPOSURE TEMPERATURE (Power ON): | 65ºC (149ºF) |
| MAX. PERMISSABLE EXPOSURE TEMPERATURE (Power OFF): | 90ºC (194ºF) |
| MIN. OPERATING TEMPERATURE: | -40℃(-40℉) |
| POWER SUPPLY: | DC/AC 12/24/36 110/220/380/660V |
| START-UP CURRENT: | ≤0.4A/m |
| MIN. BENDING RADIUS： | 25.4mm |
| OUTPUT: | 10,15,25,30 W/m |
| COLOR: | BLACK |
| NOMINAL SIZE: | 13.5*5.5mm |
| TEMPERATURE CLASSIFICATION: | T6 85℃(185ºF) |
| MIN. RESISTANCE OF PROTECTIVE BRAIDING: | 20MΩ / VDC 2500 |
Ordering Information:
| DBR-J | PE Plain |
| DBR-P | Braided PE Insulation |
| DBR-P/J | PE Overjacket with Braided PE Insulation |
| DBR-P/Jf | PE Overjacket with Braided F46 Insulation |
| DBR-Pf/Jf | F46 Overjacket with Braided F46 Insulation |
Model Example : DBR-Pf/Jf-25W-220V
DBR-
Model
Pf/Jf-
Construction
25W-
Heater Wattage (W/m)
220V
Operating Voltage (V)
Maximum Circuit Length by Start-up Temperature and Breaker Size:
| Cable Rating | 10℃ Start-up (m) | 0℃ Start-up (m) | -10℃ Start-up (m) | -20℃ Start-up (m) | ||||
| 16A | 25A | 16A | 25A | 16A | 25A | 16A | 25A | |
| DBR-10W-220V | 135 | 175 | 98 | 130 | 85 | 110 | 76 | 99 |
| DBR-15W-220V | 120 | 150 | 88 | 110 | 75 | 92 | 67 | 82 |
| DBR-25W-220V | 78 | 90 | 56 | 65 | 50 | 56 | 45 | 50 |
| DBR-30W-220V | ||||||||
Please note: The material contained in this document is presented in good faith and believed to be reliable and accurate. However, because testing conditions may vary and material quality or information that may be provided in whole or in part by others may be beyond our control, no warranty expressed or implied, is given and Wuhu Keyang New Material Co., Ltd. can assume no liability for results obtained or damages incurred through the application of the data and tests presented.
