F-MAT Underfloor Heat Mat (Silver Aluminium Foil)
Previous
Next
Welcome To Share This Page

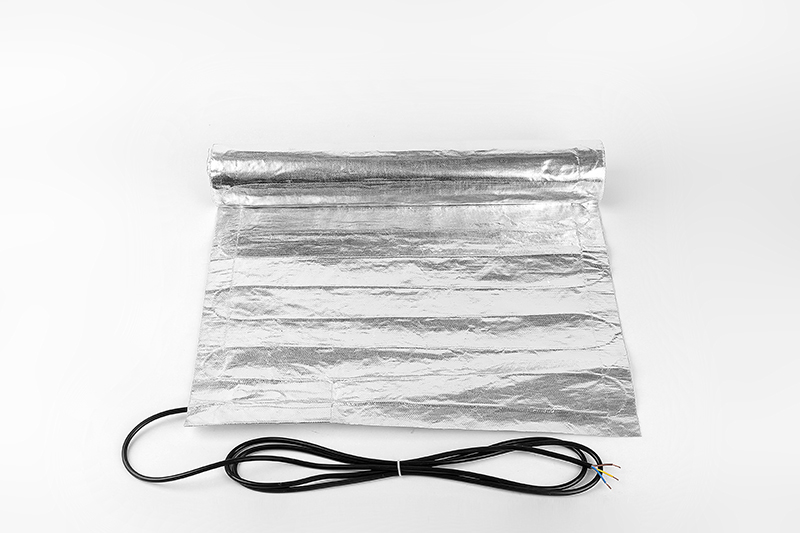

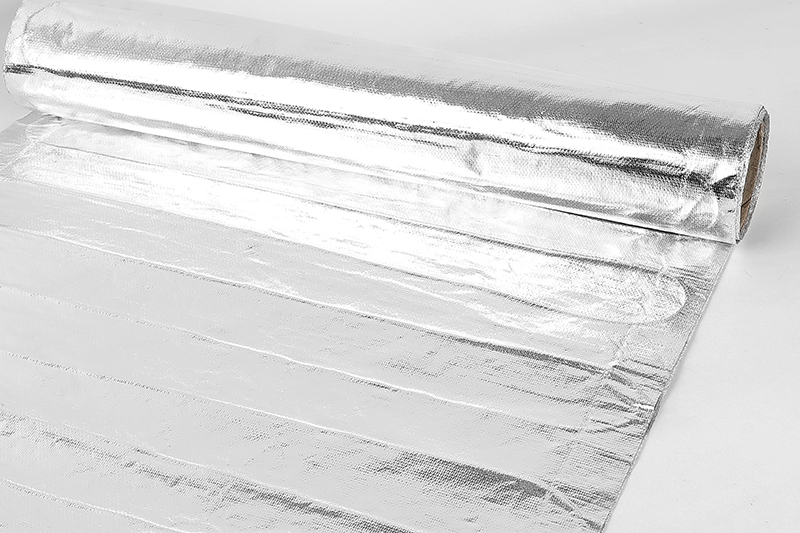

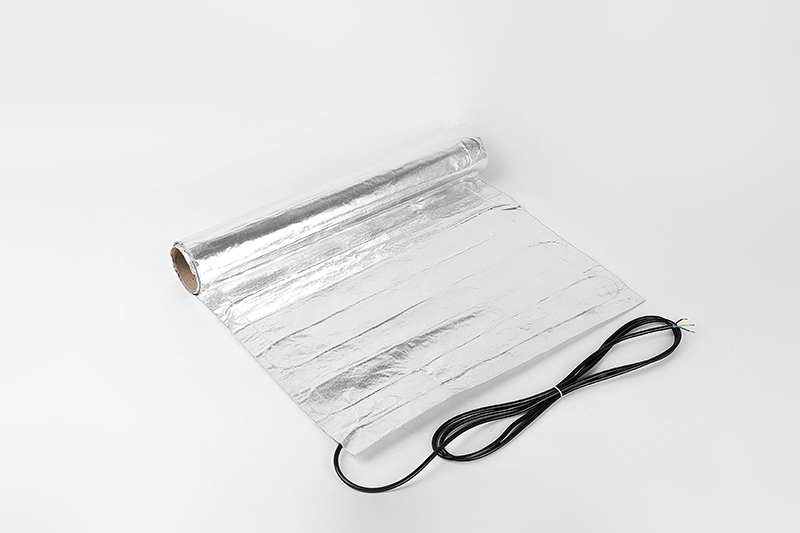

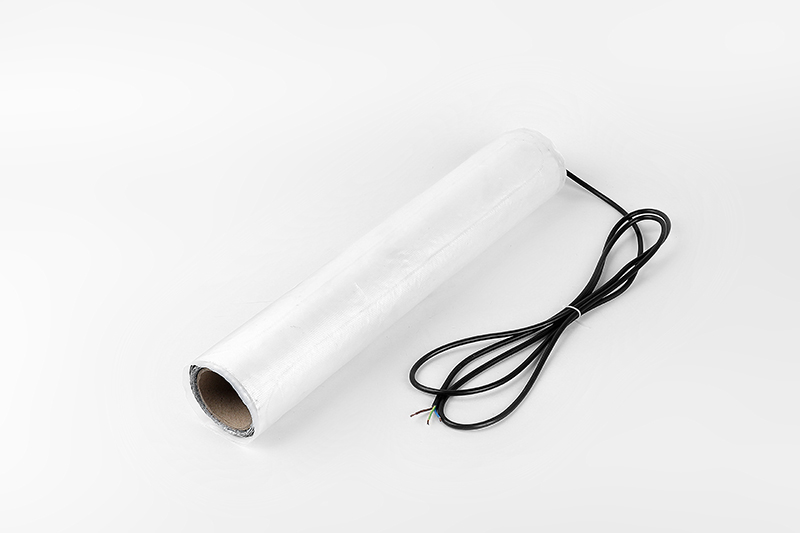

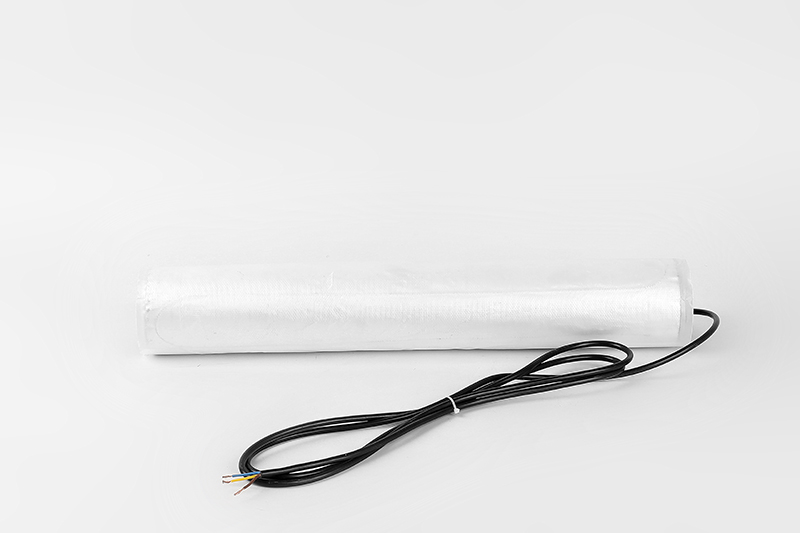

Aluminum Foil Twin Conductor Under Floor Heating Mat 150W/m2
Introduction
F-MAT is designed for use under laminate, under carpet, engineered and most solid wood floors,
having the heating cable pre-spaced onto an Aluminum foil.Very thin and very easy for installation.
increasing floor level by only 1.2mm.
SPECIFICATION
| CABLE CONSTRUCTION | Twin Condcutor | ||
| CONDUCTOR INSULATION | Fluoroplastic | ||
| PROTECTIVE JACKET | PVC | ||
| CONNECTION TYPE | Out Splice | ||
| THICKNESS | 1.2mm | ||
| WATTAGE OUTPUT | 150w/m² | ||
| CABLE THICKNESS | 3.6mm | ||
| CABLE SPACING | 50mm | ||

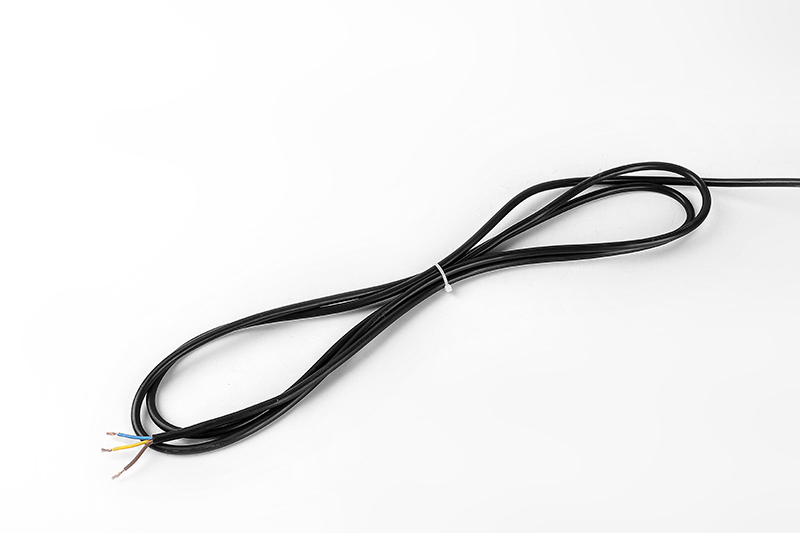

| COLD TAIL LENGTH | 2.5m | ||
| RESISTANCE TOLERANCE | -5 %,+10% | ||
| EARTH TYPE | 100% Shielded | ||
| RATED VOLTAGE | 220V |
