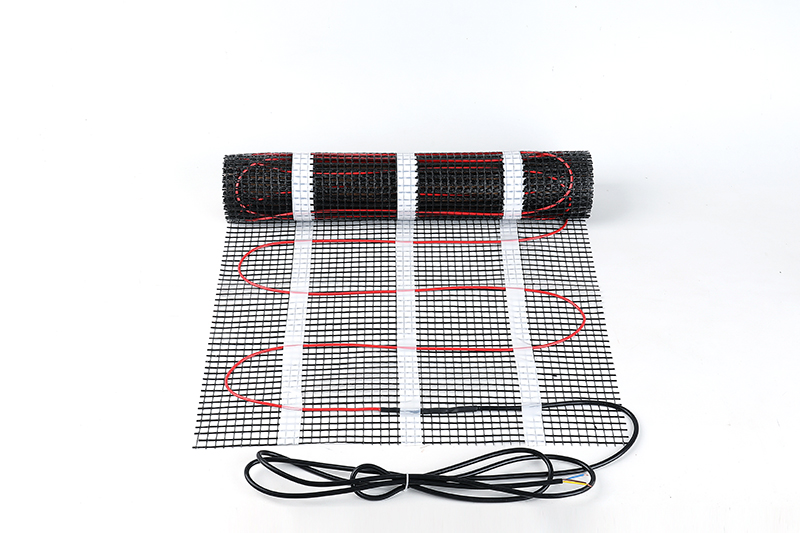

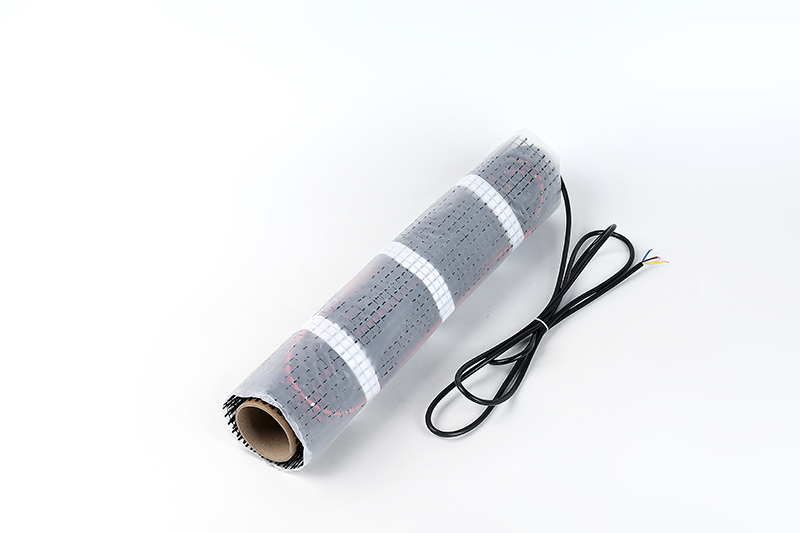

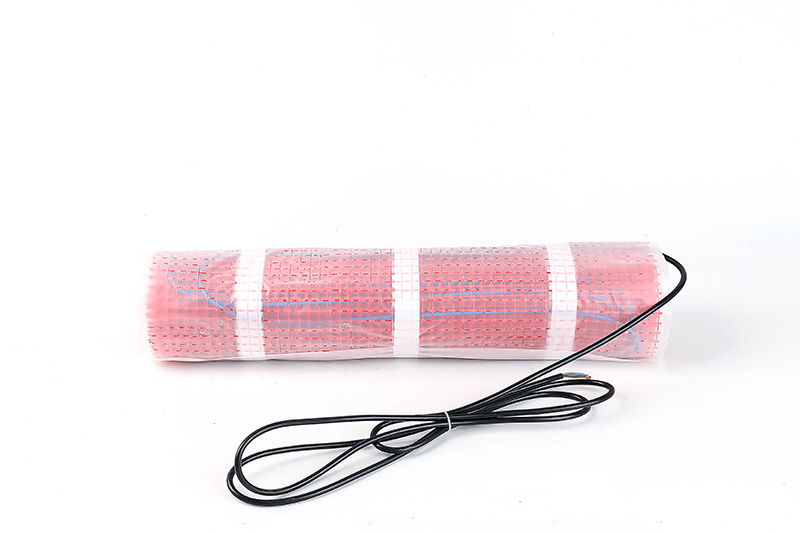

T-MAT Underfloor Heat Mat

Welcome To Share This Page

Twin Conductor Under Floor Heating Mat 150W/M2 200W/M2

Model: T-MAT

Introduction

T-MAT is made of a twin conductor heating cable for ease of installation and very low EMF. The mat thickness of only 3.6mm enables underfloor heating installations into most quality two-part adhesive with a minimum increase in floor height.

CONSTRCTION:

Thin 3.6mm cable thickness keeps the increase in floor height to a minimum.
Tough Fluoropolymer conductor insulation with resilient PVC outer insulation ensuring durability.
150w/m2 heating mats are suitable as a primary heating source. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.
Easy installation with zero maintenance required. Once installed there is nothing to leak or burst and nothing to flush, bleed, clean or service.
Grid structure,simple installation.
100% AI tape braid,zero EMR.
Twin condcuter design,only one cold lead
Metal ground wire, keep you safe
Each cable test 13 times before delivery
Waterproof IP68

Cable construction Twin condcutor
Conductor insulation Fluoroplastic
Protective jacket PVC
Connector Out splice
Wattage output 150w/m²&200w/m²
Cable Thickness 3.6mm
Cable Spacing 80mm
Cold Tail Length 2.5m
Resistance tolerance +10/-5 %
Earth Type 100% Coverage Earth Shield
Rated voltage 220V
