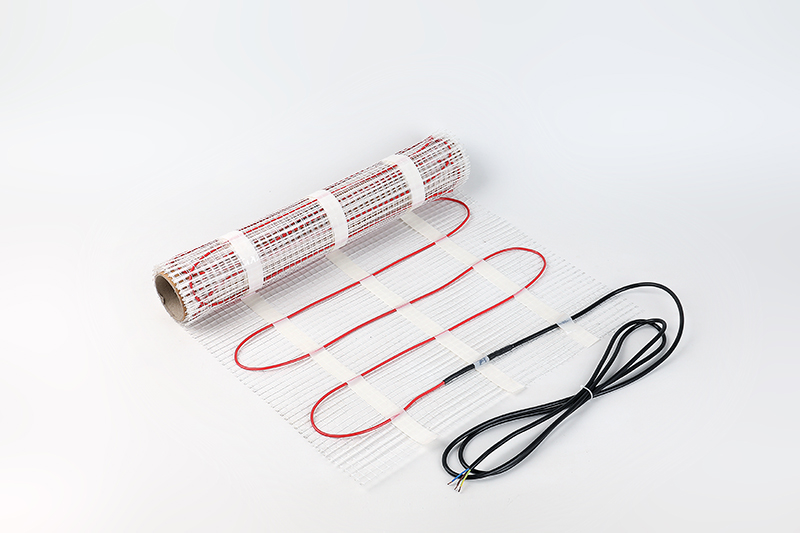

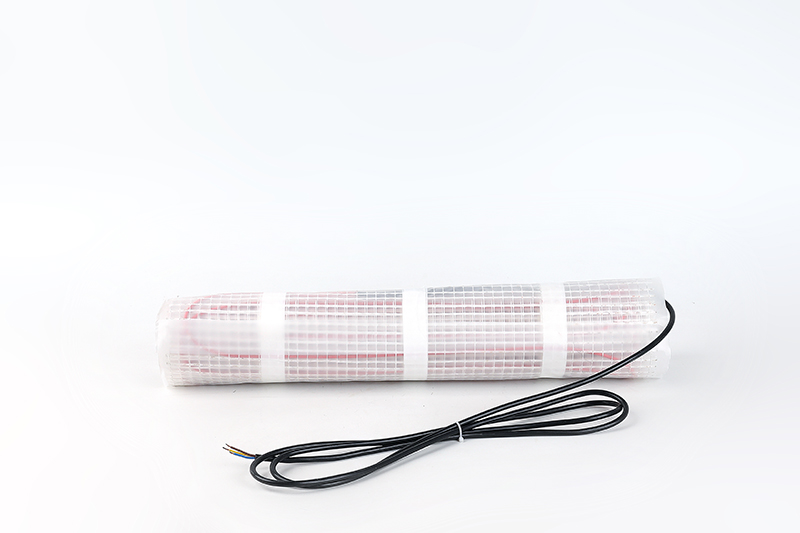

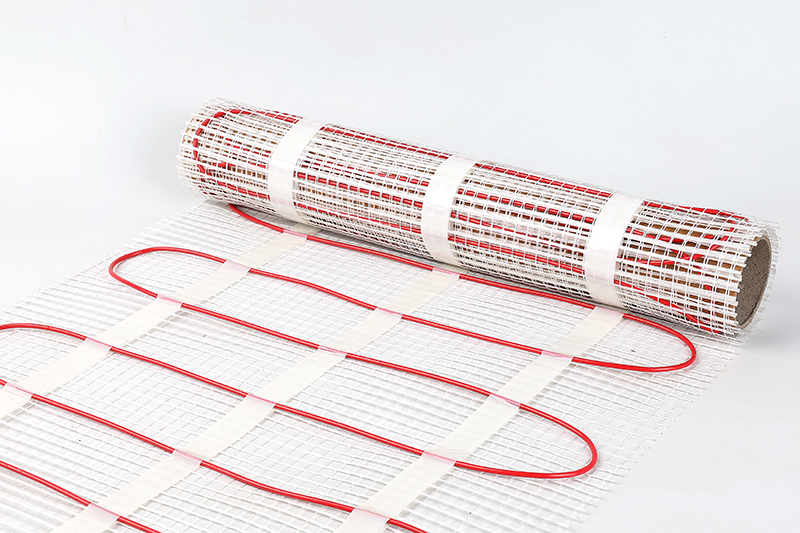

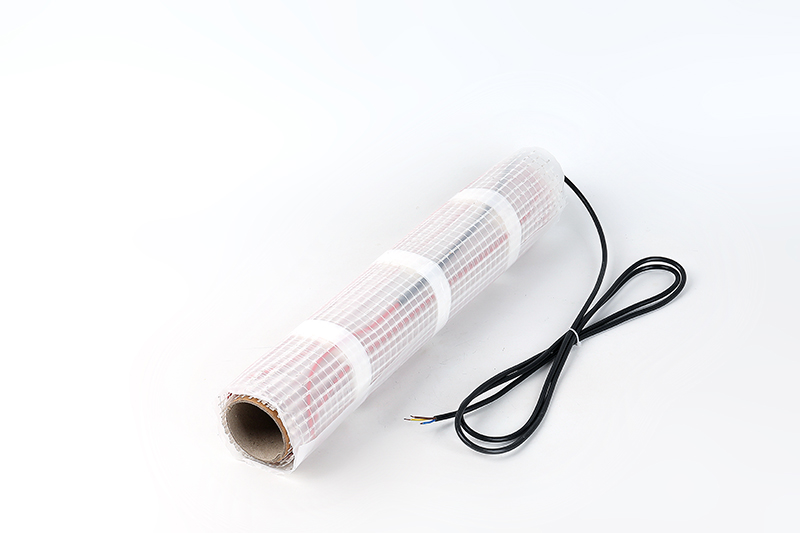

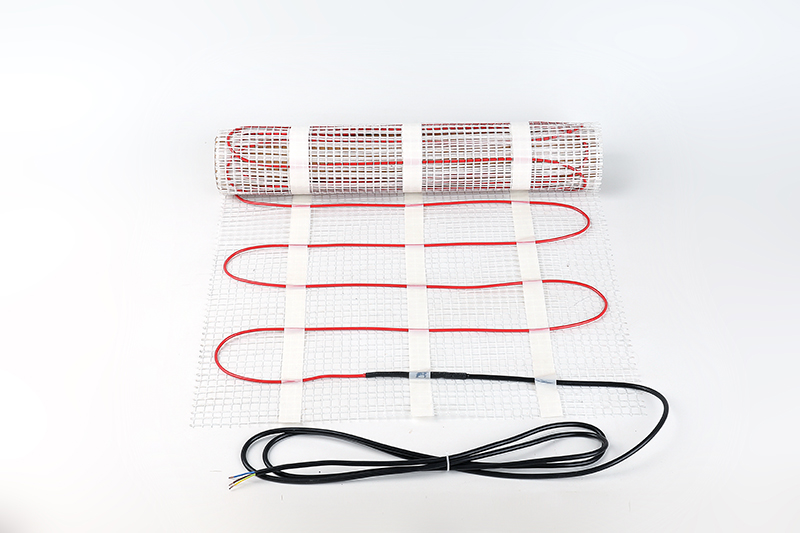

Twin Conductor Under Floor Heating Mat 150W/m2 200W/m2
Introduction
T-MAT is made of a twin conductor heating cable for ease of installation and very low EMF. The mat thickness of only 3.6mm enables underfloor heating installations into most quality two-part adhesive with a minimum increase in floor height.
ADVANTAGES
- Thin 3.6mm cable thickness keeps the increase in floor height to a minimum.
- Tough Fluoropolymer conductor insulation with resilient PVC outer insulation ensuring durability.
- 150w/m2 heating mats are suitable as a primary heating source. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.
- Easy installation with zero maintenance required. Once installed there is nothing to leak or burst and nothing to flush, bleed, clean or service.
- Grid structure,simple installation.
- 100% AI tape braid,zero EMR.
- Twin condcuter design,only one cold lead
- Metal ground wire, keep you safe
- Each cable test 13 times before delivery
- Waterproof IP68
SPECIFICATION
| CABLE CONSTRUCTION | Twin Condcutor | ||
| CONDUCTOR INSULATION | Fluoroplastic | ||
| PROTECTIVE JACKET | PVC | ||
| CONNECTION TYPE | Out Splice | ||
| WATTAGE OUTPUT | 150w/m² & 200w/m² | ||
| CABLE THICKNESS | 3.6mm | ||
| CABLE SPACING | 80mm | ||

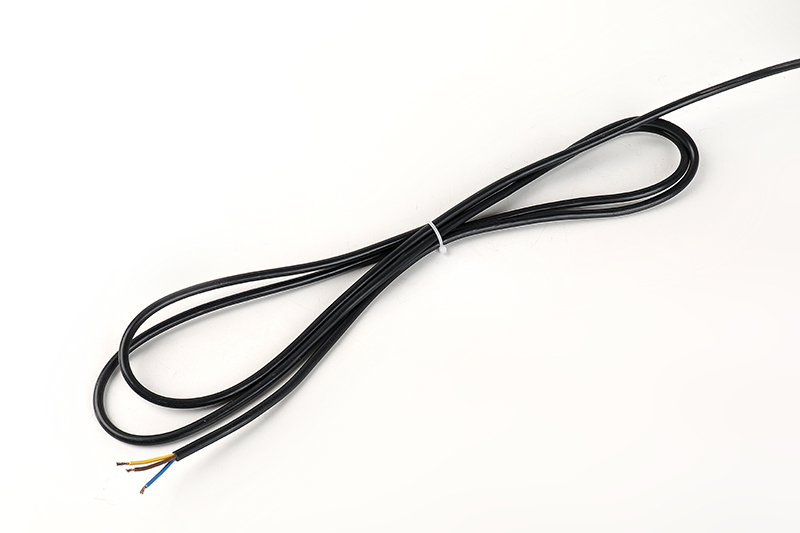

| COLD TAIL LENGTH | 2.5m | ||
| RESISTANCE TOLERANCE | -5 %,+10% | ||
| EARTH TYPE | 100% Shielded | ||
| RATED VOLTAGE | 220V |
